Gears, Lockers, and Axle / Differential Parts




Locking Differentials

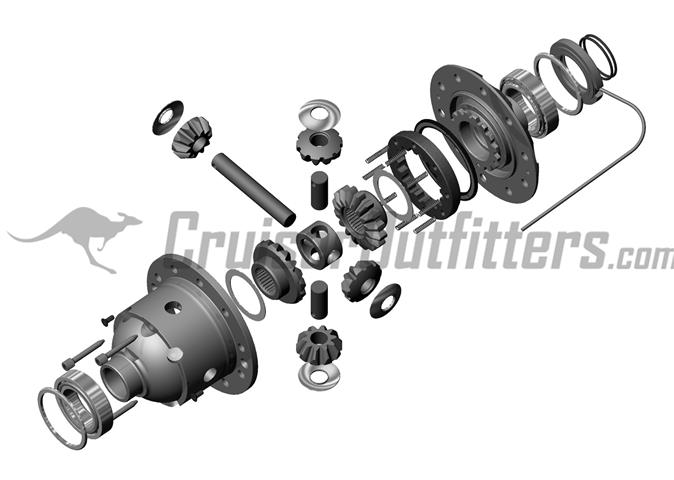

ARB Air Lockers, Air Compressors & ARB Parts
Click here for more information

Air Lockers Retail Price $1192.50 Your Cost $940.50
Large Compressors Retail: $544.50   Your Cost $517.50
Medium Compressors Retail: $289.50  Your Cost $275.50
Small Compressors Retail: $250.50  Your Cost $170.50

ARB Air Locker Replacement Parts and Accessories
Click here for more information







Pic. coming soon

Drop-In Land Cruiser Differentials
Click here for prices and more information
Complete ready to install, third-members. Applications for Land Cruisers and Pickups/4Runners. Available with ARB, Detroit, Lock Right, etc. Based upon availability of core differentials.
Re-gear Tech Information & FAQ




  Lock Right Lockers
Click here for prices and more information
Available for most applications










Detroit Lockers
30 Spline Land Cruiser - $735.50
Part# DET187C-152A
(Fits 69-97 4x/5x/6x/7x/8x Applications)

Toyota 8" Axle           - $585.50
Part# DET187S-61A

Toyota 8" Turbo & V6 - $585.50
Part# DET187S-61B








Ring & Pinion Components







TOYLC456 Shown

Ring and Pinion Gear Sets
Re-gear Tech Information & FAQ

Land Cruiser

4x/55/6x F&R & 8x Rear Only - $245.00
(3.70 Ratio - Nitro Gear)
Part# TOYLC370 - Out of Stock

4x/55/6x F&R & 8x Rear Only - $225.00
(4.11 Ratio - Sierra Gear/Nitro Gear)
Part# TOYLC411

4x/55/6x F&R & 8x Rear Only - $212.50
(4.56 Ratio - Sierra Gear/Nitro Gear)
Part# TOYLC456

4x/55/6x F&R & 8x Rear Only - $205.50
(4.88 Ratio - Sierra Gear/Nitro Gear)
Part# TOYLC488

4x/55/6x F&R & 8x Rear Only - $233.50
(5.29 Ratio - Sierra Gear/Nitro Gear )
Part# TOYLC529

Pickup & 4Runner (early - 1995)

Pickup/4Runner 8"         - $173.50
(4.11/4.56/4.88/5.29/5.71 Ratios - Sierra Gear/Nitro Gear)
Part# TOY411, TOY456, TOY488, TOY529, or TOY571

Pickup/4Runner 8" - V6  - $189.50
(4.11/4.56/4.88/5.29/5.71 Ratios - Sierra Gear/Nitro Gear)
Part# TOYV64.11-5.71

Tacoma & 4Runner (1996 - Current)

96'-04' Tacoma & 96'-02' 4Runner IFS Front
4.56 Ratio - Sierra Gear/Nitro Gear - $185.50
4.88
Ratio - Sierra Gear/Nitro Gear - $165.50
5.29
Ratio - Sierra Gear/Nitro Gear - $195.50
Part# TOYT456R, TOYT488R & TOYT529R

05'-11' Tacoma & 03'-09' 4Runner IFS Front - $233.50
(4.56 & 4.88 Ratio Only - Sierra Gear/Nitro Gear)
Part# TOYTAC456R, TOYTAC488R

96'-11' Tacoma Rear 8.4" Non-E-Lock Differential - $195.50
(4.56/4.88/5.29 Ratios
- Sierra Gear/Nitro Gear)
Part# TOYT456, TOYT488 & TOYT529

(Please specify Sierra or Nitro gear preference. Some Nitro Gear applications require a 29 Spline Pinion Flange, Part# PN35100 as well as a 29 spline pinion seal, Part# PN41009). Available for most other applications E-mail for quote or questions, specify make and model, desired gearing.





TOYLC456R Shown

80 & 100 Series FRONT Reverse Cut Gears
High quality reverse cut gears for you high-pinion front axle.

4.11 Ratio - Part# TOYLC411R - Sale Price $265.00 (Nitro Only)
4.56 Ratio - Part# TOYLC456R - Sale Price $265.00 (Nitro Only)

4.88 Ratio - Part# TOYLC488R - Sale Price $227.00
5.29 Ratio - Part# TOYLC529R - Sale Price $227.00

(Nitro High pinion gears require a 29 Spline Pinion Flange, Part# PN35100 as well as a 29 spline pinion seal, Part# PN41009, these can be ordered as Part# PN35110 which includes the flange, seal and nut)






UZJ100 Rear Axle Gears
In-Stock from Nitro, call for pricing!

URJ200 Front & Rear Axle Gears
In-Stock from Nitro, call for pricing!





IKTOYLCB Shown


Ring and Pinion Install Kits (Differential Overhaul Kits)
Re-gear Tech Information & FAQ

IKTOYLC                 - $121.75
(Fits 4x/55/6x Series Front & Rear Applications)

IKTOYLCB               - $129.75
(Fits 4x/55/6x Series F & R W/ ARB RD33/124/142/153* Locker)

IKTOYLCB              - $129.75
(Fits 80/81 Series Rear w/o E-Locker)

IKTOYLCB100        - $157.50
(Fits UZJ100 Rear w/o E-Locker)

IKTOYLCBE            - $249.50
(Fits 80/81 Series Rear With OEM E-Locker)

IKTOYLCBE100       - $295.50
(Fits UZJ100 Rear With OEM E-Locker)

IKTOYLCF              - $153.75
(Fits 80/81 Series High Pinion Front)

IKTOYLCFE            - $177.75
(Fits 80/81 Series High Pinion Front w/ OEM E-Locker)

IKTOYLCF100        - $236.50
(Fits UZJ100 High Pinion Front Axle)

IKTOY8A                - $124.50
(Fits Pickup/4Runner 8", up to 85')

IKTOY8B               - $108.75
(Fits Pickup/4Runner 8", 86' & up)

IKTOYV6               - $153.75
(Fits Pickup/4Runner 8" V6 Applications)

IKTOY75B            - $145.50
(Fits 96'-04' Tacoma & 96'-02' 4Runner IFS Front)

IKTOY8RIFS         - $177.50
(Fits 05'-11' Tacoma & 03'-09' 4Runner IFS Front)

IKTOYTAC           - $177.75
(Fits 96'-11' Tacoma Rear 8.4" Non-E-Lock Differential)

IKTOYTACL           - $177.75
(Fits Tacoma/4Runner 8" V6 Rear w/E-Locker)

Kits include everything needed for a standard differential overhaul or ring and pinion installation. Parts included: Two pinion bearings, two carrier bearings, pinion nut & seal, crush sleeve, pinion depth and preload shims, marking compound and silicone. V6 and 8" kits also include the ring gear bolts which are not required for the 9.5" applications

Kits included high quality Timken bearings unless otherwise specified. Timken is an OE Toyota supplier and we've used thousands of their bearings trouble free. We do stock install kits featuring Koyo (Japanese) bearings, please call for more information.

All aftermarket gears are for fine-spline pinion flanges only. Used course spline sets are available in some ratios. Please call or e-mail for more information.

*ARB RD33, 124, 142 & 153 Air Lockers use 50mm ID carrier bearings, use IKTOYLCB.

Pinion Install Kits (Differential Overhaul Kits)
Re-gear Tech Information & FAQ

PKTOYLC                 - $89.50
(Fits FJ40/55/60 Front & Rear & 80/100 Rear Applications

PKTOYLCC               - $89.50
(Fits UZJ100 High Pinion Front Axle)

PKTOYV6/LCF          - $89.50
(Fits V6 PU/4Runner/Tacoma Rear & 80/100 Front Applications)

Kits include pinion bearings, pinion nut & seal, crush sleeve, shims, marking compound and silicone. Kits included high quality Timken bearings unless otherwise specified. Timken is an OE Toyota supplier and we've used thousands of their bearings trouble free. A must have for all ring and pinion or locker installs. Pinion Install Kits NOT include carrier bearings, see full Ring & Pinion Install kits for kits including carrier bearings.




    FAQ: What parts do I need for a re-gear or differential overhaul on my Toyota?
Great question! If you are not super familiar with the re-gear process or don't know exactly what items are recommended we have have just what you need. Please take a minute to read through our re-gear tech and information page featured here:
Re-gear Tech Information & FAQ





Ring Gear Bolt & Nut
- $4.00/each

For use with thru-bolt style ring-gears, 12 required per axle. Pre 1969 axle will require an updated ring-gear and carrier assembly.
(Fits 69'-97' FJ40/55/60/70 F&R & 80/100 Rears)
Part# PN35010K





Magnetic Drain/Fill Plug W/Gasket - $6.25/each
OEM Allen Head Toyota Drain Plug With Magnet
(Fits 1958-1/1990 Manual Transmissions, 1958-1/1998 Transfer Case Drain & Fill Plugs, & 1958-1/1998 Differential Drain & Fill Plugs)
Part# OP18021

Gasket Only -
Part# OPG10010 - $1.50/each







Knuckle Rebuild Kits
(Front Axle Overhaul Kits)







FA6975 Shown

Knuckle Rebuild Kit - Drum Axle - Sale Price $95.00
Toyota solid front axle knuckle rebuild kits, one required per axle. Includes all seals, gaskets, felt/rubber wipers, shims, lock washers and Koyo trunnion/knuckle bearings. One required per vehicle
(Fits Early-9/1975 4x/5x Series)
Part# FA6975

FA6975 Knuckle Rebuild Kit W/Wheel Bearings
Includes the FA6975 complete kit plus Japanese wheel bearings. One required per vehicle

With High Quality Import (China) Wheel Bearings - $195.00
(Fits Early-9/1975 4x/5x Series)
Part# FA6975KWB

With Japanese Wheel Bearings     - $215.00
(Fits Early-9/1975 4x/5x Series)
Part# FA6975KWB






FA7590KWB Shown


Knuckle Rebuild Kit - Disc Axle - Sale Price $90.00
Toyota solid front axle knuckle rebuild kits, one required per axle. Includes seals, gaskets, felt/rubber wipers, shims, lock washers and Koyo trunnion/knuckle bearings. One required per vehicle
(Fits 9/1975-12/89 4x/5x/6x/7x Series & 62 & 1979-85 PU/4RNR)
Part# FA7590

FA7590 Knuckle Rebuild Kit W/Wheel Bearings
Includes the FA7590 components plus wheel bearings. One required per vehicle. Please choose desired brand of bearing.

With Timken Bearings  - $150.00
(Fits 9/1975-12/89 4x/5x/6x/7x Series & 62 & 1979-85 PU/4RNR)
Part# FA7590TWB

With Koyo Bearings     - $175.00
(Fits 9/1975-12/89 4x/5x/6x/7x Series & 62 & 1979-85 PU/4RNR)
Part# FA7590KWB







FA7X97 Shown



Knuckle Rebuild Kit - Non-US 70 SeriesNew $135.00
Toyota solid front axle knuckle rebuild kits, one required per axle. Includes seals, gaskets, felt/rubber wipers, shims, lock washers and Koyo trunnion/knuckle bearings. One required per vehicle.
(Fits 1/1990-1/998 Non-US 70 Series)

Part# FA7X97

70 Series Knuckle Rebuild Kit W/Wheel Bearings
Includes the FA9097 components plus wheel bearings. One required per vehicle. Please choose desired brand of bearing.

With Timken Wheel Bearings  - $205.00
(Fits 1/1990-1/1998 Non-US 70 Series)
Part# FA7X97TWB

With Koyo Wheel Bearings     - $225.00
(Fits 1/1990-1/1998 Non-US 70 Series)
Part# FA7X97KWB

Also available for Electric Hub models:
(Fits 1/1990-1/1998 Non-US 70 Series Cruisers with Electric push-button actuated front axle hubs. Includes standard knuckle rebuild kit components as well as E-hub specific gaskets, seals and hardware.)
Part# FA7X97E -
$175.00

Part# FA7X97ETWB - $245.00
Part# FA7X97EKWB - $265.00







FA9097KWB Shown


Knuckle Rebuild Kit - 80 Series Sale Price $115.00
Toyota solid front axle knuckle rebuild kits, one required per axle. Includes seals, gaskets, felt/rubber wipers, backing plates, lock washers and Koyo trunnion/knuckle bearings. Replacement shims are not required on 80 Series axles. One required per vehicle.
(Fits 1/1990-1/1998 80/81 Series & LX450)

Part# FA9097

FA9097 Knuckle Rebuild Kit W/Wheel Bearings
Includes the FA9097 components plus wheel bearings. One required per vehicle. Please choose desired brand of bearing.

With Timken Wheel Bearings  - $185.00
(Fits 1/1990-1/1998 80/81 Series & LX450)
Part# FA9097TWB

With Koyo Wheel Bearings     - $205.00
(Fits 1/1990-1/1998 80/81 Series & LX450)
Part# FA9097KWB






FAQ: Timken versus Koyo wheel bearings? Which is better? Both are a fantastic bearing and due to customer demand for both options we stock them both. Timken bearings are made in the USA, Koyo bearings are made in Japan. Both are used OEM by Toyota in older Land Cruisers and various new models as well. We are 100% confident in either option for new and old Land Cruisers alike.

FAQ: Upgraded heavy duty inner axle seals? All of our knuckle overhaul kits include the standard stock style seal (Part# FA33085 and FA35010 below). If your looking for a heavy duty option due to extreme turn angles, worn seal surfaces on your inner axles or slightly untrue axle housings, Cruiser Outfitters stocks the Marlin Crawler Heavy Duty Eco Seal for all 1969-1997 Land Cruiser axles. See Part# FA33085MA and FA35010MA below. Purchase two for your axle overhaul.






FAQ: What else might I need in addition to the knuckle rebuild kit? We have assembled these kits to contain everything needed for a standard knuckle overhaul, however there might be some items you consider purchasing for your particular rebuild. We have sold thousands of knuckle rebuild kits over the past 20 years and rebuilt hundreds of axles in our shop, we feel confident that our kits contain the right parts to do the job right the first time. Rather than trying to build a 'one-kit-fits-all' the includes parts you don't need and a higher cost, we recommend the following parts for the specific procedures:

Replacing/Rebuilding Your Birfield Joint?
Are you Planning to overhaul/replace or switch your birfield (outer axle joint) from one side to the other? If so, you will want to make sure to have the axle clips that go inside of the birf, they often break when removing the inner axle from the birf. See part# FACL27091 & FACL34005 below for your application. Order 2 per axle.

Rebuilding
Your Stock Aisin/Asco Hubs?
Are you planning to completely disassemble and overhaul your Aisin hubs? Fortunately they are very simple and contain only a few consumable parts. Plan on 2 of the Aisin dial 0-Rings (Part# HUB060010) and also consider replacing your worn hub dial detent spring and ball (Part# HUBDETENT)
, 1 kit required per hub. If you need addition hub parts such as studs, cone washers or dial bolts, see our Aisin Hub Parts listing below.

What tools will you need to complete the job?

At a minimum you will want to have a 54mm hub socket for all disc brake Land Cruiser axle work, see part# FA15007 for our great quality socket. Additionally you will need basic hand tools, a brass drift and a spring-scale gauge (Part# FASCALE). These additional items are all easy to source at your local auto parts store.

Looking for more information on the rebuild process?
Please take a minute to read through our front axle rebuild tech and information page featured here:
Knuckle Rebuild Process Tech Information & FAQ








Individual Knuckle (Front Axle) Components







FAXTBIRF4340 Shown


Replacement/Upgrade Birfield Joints

Standard-Duty Replacement Birfield Joints
Replace your worn or broken birfield joints with these stock duty replacement options.
Two required per axle.

Part# FAXTBIRFFJ80 - $225.00/each
Includes ABS ring for use on later models. (Fits all 1991-97 FJ/FZJ/HZJ/HDJ80 & LX450, 1991-94 require use of updated hub flange, part# HUBFLG60040)
Features 24 spline's inside the birf joint for use with stock inner axle shafts

Heavy-Duty Nitro Chromoly Birfield Joints - PREMIUM
Replaces your worn or broken birfield joint. 4340 chromoly, larger housing and redesigned internal parts for additional strength. Joint is cryo and heat treated. Two required per axle.

Part# FAXTBIRF4340 - $149.00/each
(Fits 9/1975-90 40/55/60/62 Series & 79'-85' Mini Truck)
Features 27 spline's inside the birf joint for use with stock inner axle shafts

Part# FAXTBIRFFJ80HD - $295.00/each
Requires re-use of ABS tone ring from existing birf.
(Fits 1991-97 FJ/FZJ/HZJ/HDJ80 & LX450)
Features 24 spline's inside the birf joint for use with stock inner axle shafts & dual snap ring grooves for use on all 80 Series models)

Heavy-Duty Longfield Chromoly Birfield Joints
Replaces your worn or broken birfield joint. 4340 chromoly, larger housing and redesigned internal parts for additional strength. Joint is cryo and heat treated. Two required per axle.

Part# TG301476-1-KIT - $124.50/each
(Fits 9/1975-90 40/55/60/62 Series & 79'-85' Mini Truck)
Features 27 spline's inside the birf joint for use with stock inner axle shafts








Upgraded Birfield/Axle Combination Kits

Nitro Heavy Duty Chromoly Axle Kits
Axle kits feature 30 spline axles at both ends, an upgrade over the 27 spline's found in stock applications. Kits are fully compatible with stock differential components, housing and hubs. Components feature high strength chromoly material, heat-treating and polishing for uniformity and ultimate strength. One kit required per vehicle.

Part# FAXTBIRFFJ40KIT - $599/kit
(Fits 9/75'-1984' 4x/55 Series w/Disc Brakes)

Part# FAXTBIRFFJ60KIT - $599/kit
(Fits 8/80'-1/1990 60/61/62 Series w/Disc Brakes)

Part# FAXTBIRFLJ70KIT - $750/kit
(Fits Non-US model LJ7X, RJ7X, KZJ7X & Bundera/Prado)

Part# FAXTBIRF30KIT - $599/kit
(Fits 1979-1985 Toyota P/U, 4Runner & solid axle swaps)

Part# FAXTBIRFFJ80HDKIT - $765/kit
Requires re-use of ABS tone rings from existing birf. Nitro 80 kits feature the "Big 24" splines inside of the birfield joint & dual snap ring grooves for use on all 80 Series models.
(Fits 1991-97 FJ/FZJ/HZJ/HDJ80 & LX450)






RCV Chromoly 30 Spline Axle Kits
Kits are fully compatible with stock differential components, housing and hubs. Components feature high strength chromoly material, heat-treating and polishing for uniformity and ultimate strength. One kit required per vehicle.

Part# RCVJ2851-PLC40 - $645/set
(Fits 9/75'-1990 4x/55/7x Series w/Disc Brakes)

Part# RCVJ2851-PLC60 - $645/set
(Fits 8/80'-1/1990 60/61/62 Series w/Disc Brakes)

Part# RCVJ2474-PRCV - $785/set
Requires re-use of ABS tone rings from existing birf. This RCV kits feature the "Big 24" splines inside of the birfield joint. For 30 spline, see part# RCVJ2474-30TRCV
(Fits 1991-97 FJ/FZJ/HZJ/HDJ80 & LX450 with drive flanges or manual AISIN locking hubs)

Part# RCVJ2474-30TRCV- $885/set
Requires re-use of ABS tone rings from existing birf. This RCV kits features the upgraded 30 splines inside of the birfield joint & dual snap ring grooves for use on all 80 Series models.
(Fits 1991-97 FJ/FZJ/HZJ/HDJ80 & LX450 with drive flanges or manual AISIN locking hubs)

RCV 300M 30 Spline Axle Kits

Part# RCVJ2851-PLC40M - $895/set
(Fits 9/75'-1990 4x/55/7x Series w/Disc Brakes)

Part# RCVJ2851-PLC60M - $895/set
(Fits 8/80'-1/1990 60/61/62 Series w/Disc Brakes)

Part# RCVJ2474-30T300M - $1185/set
Requires re-use of ABS tone rings from existing birf. This RCV kits features the upgraded 30 splines inside of the birfield joint & dual snap ring grooves for use on all 80 Series models.
(Fits 1991-97 FJ/FZJ/HZJ/HDJ80 & LX450 with drive flanges or manual AISIN locking hubs)






Longfield Chromoly 30 Spline Axle Kits
Kits are fully compatible with stock differential components, housing and hubs. Components feature high strength chromoly material, heat-treating and polishing for uniformity and ultimate strength. One kit required per vehicle.

Part# TG303402-1-KIT - $418.95/KIT
(Fits 9/75'-1990 4x/55/7x Series w/Disc Brakes)

Part# TG301720-1-KIT - $680.50/KIT
Longfield 80 Series Gun Drilled 30-Spline Super Set. Made out of 100% chromoly and are precision polished to remove any imperfections that may cause stress risers. The internals of the birfield are also made from 4340 chromoly and are dual heat treated for superior strength. The birfield has a M8 grease zerk at the end of the stub shaft and is gun drilled through the center of the birfield to allow for grease to pass through the zerk fitting and into the internals. This will save you precious time by eliminating the need to disassemble your axle just to service your birfields. The 80 Series Gun Drilled 30-Spline Birfields also have a shallow relief near the splines on the stub shaft known as a Machined Spline Saver. The Machined Spline Saver eliminates stress concentrations caused by grooving from the tool that makes the splines on the stub shaft. The stress concentration from the spline groove is a common failure point on birfield stub shafts. The stub shaft of the Birfield has dual snap ring grooves to accommodate 80 Series with short and long drive flanges. The axle shafts are also made out of 4340 chromoly steel. Included in this kit is a set of new 80 Series ABS Tone Rings. This will allow you to install the Longfield 80 Series Gun Drilled 30-Spline Super Set on both ABS and Non-ABS 80 Series applications. No other kit on the market can compare. Note: Included is the 80 Series Extended Dust Caps for 1990-1994 models that use short drive flanges.





FA460010 Shown

Front Axle Shim & Gasket Kit - $40.00 ea.
Includes felt & rubber wipers, steel wiper rings, spindle & backing plate gaskets, hub dust seals, hub gaskets and shims. One kit required per axle.
(Fits 69'-9/75' FJ40/55 Drum Brake Axles)

Part# FA460010

Front Axle Shim & Gasket Kit
- $40.00 ea.

Includes felt & rubber wipers, steel wiper rings, spindle & backing plate gaskets, hub dust seals, hub gaskets and shims. One kit required per axle.
(Fits 9/1975 - 1/1979 FJ40/55)

Part# FA460011

Front Axle Shim & Gasket Kit - $40.00 ea.
Includes felt & rubber wipers, steel wiper rings, spindle& backing plate gaskets, hub dust seals, hub gaskets and shims. One kit required per axle.
(Fits 1/1979 - 1/1990 FJ40/55/60/62)

Part# FA460012

Front Axle Shim & Gasket Kit - $49.50 ea.

Includes felt & rubber wipers, steel wiper rings, spindle& backing plate gaskets, hub dust seals, hub gaskets and shims. One kit required per axle.
(Fits 90'-97' FJ/FZJ80 & LX450)

Part# FA60050

Note: Shim & Gasket Kits do not include wheel seals, inner axle seals or spindle lock washers. Please order those items individually as needed from selection below.





Knuckle Wiper Kit Early-90' - $15.50 ea.
Fix that leaky knuckle seal. Includes backing plate, felt wiper, rubber wiper and metal band. One kit per knuckle, 2 per axle. (Fits Early-90' FJ40/55/60/62 & 79'-85' Mini Truck)
Part# FA60020




Knuckle Wiper Kit 90'-97' - $18.50 ea.
Fix that leaky knuckle seal. Includes backing plate, felt wiper, rubber wiper and metal band. One kit per knuckle, 2 per axle. (1/90'-97' FJ/FZJ80 & LX450)
Part# FA60031




FA17001
Shown

  Front Axle Knuckle (Trunnion) Bearing
4 Required per axle, Japanese Koyo Bearings w/correct taper.

Part# FA17001         - $17.50 ea.
(Fits 1958-1/90 4x/5x/6x/7x & 79-85 PU/4Runner)

Part# FA17007         - $19.50 ea.
(Fits 1/1990-1/98 7x Series)

Part# FA20003       - $19.50 ea
(Fits 1/1990-1/98 80 Series & LX450)







Caster/Camber Adjusting Front Axle Knuckle Bearing Sets
2 sets per axle, Koyo Bearings. These unique bearing/race combos allow caster and camber adjustments without expensive axle modifications and repairs. Can be used to improve caster without decreasing pinion angle. Can also be used to reduce interference issues with tie rod on the 80 Series while increasing caster following a suspension install.

Early - 1990 4x/5x/6x/7x Axle Applications:
Part# FA88901 - 1.2* Caster/Camber Adjustment - $97.50
Part# FA88902 - 1.5* Caster/Camber Adjustment - $97.50

Part# FA88903 - 1.8* Caster/Camber Adjustment - $82.50

Part# FA88904 - 2.2* Caster/Camber Adjustment - $82.50

1/1990-1997 80 Series Applications:
Part# FA88915 - 1.0* Caster/Camber Adjustment - $112.50
Part# FA88920 - 3.0* Caster/Camber Adjustment - $112.50

Note: Caster/Camber adjusting bearings are sold as a pair, including two bearings and two corresponding races. You must order two pairs for a complete axle retrofit.





FASHIMEARLY


FASHIMLATE



Front Axle Knuckle Bearing Shim Packs
These shim packs allow for proper adjustment of the knuckle bearing preload on the Early - 1990 4x/5x/6x/7x & 79-85 PU/4Runner axles. Contains 8 shims of varied thickness. One per axle generally suffices if you have some originals to choose from. If you have no original shims, two packs may be ideal.

Part# FASHIMEARLY - Fits 9/1975 - 1/1979 4x/5x Series - $5/each
Part# FASHIMLATE
- Fits 1/1979 - 1/1990 4x/6x/7x Series - $5/each




In Stock!
Pics Coming Soon!


Complete Front Wheel Hub Assemblies

Part# FA69046 - $315.50/each
OEM Toyota. Fits 8x Series Land Cruisers. Includes inner and outer Koyo wheel bearings, races and wheel studs. Does not include hub studs or hardware, seals or gaskets, order as needed. One required per side, two per axle.





FA60080 Shown


FA60081OEM Shown


HUB70067


HUB33002



Complete Spindles

Part# TG140205-1-KIT - $103.50/each
Trail Gear Chromoly Replacement/Upgrade. Fits 9/1975-1990 4x/5x/6x/7x & 79-85 PU/4Runner or earlier model Land Cruisers with factory Toyota disc brake conversions. Spindle bushing not included, order part# HUB70067/HUB70067OEM or re-use original spindle bushing. One required per side, two per axle.

Part# FA60060 - $135.00/each
Joint Fuji Japanese Replacement w/Spindle Bushing. Fits 9/1975-1/1990 4x/5x/6x/7x Series. Spindle bushing is pre-installed so no additional parts are needed. One required per side, two per axle.

Part# FA60080 - $145.00/each
Joint Fuji Japanese Replacement w/Upgraded Spindle Bushing/Bearing. Fits 1/1990-12/1997 8x Series/LX450. Spindle bushing/bearing combo is pre-installed so no additional parts are needed. One required per side, two per axle.

Part# FA60081OEM - $227.50/each
OEM Toyota Replacement w/Upgraded Spindle Bushing/Bearing. Fits 1/1990-12/1997 8x Series/LX450. Spindle bushing/bearing combo is pre-installed so no additional parts are needed. One required per side, two per axle.

Spindle Bushings & Bearings

Fits 9/1975-1990 4x/5x/6x/7x & 79-85 PU/4Runner:
Part# HUB70067 (Aftermarket) - $15.50/each
Part# HUB70067OEM (Toyota) - $40.50/each

(One bushing required per side, two per axle)


Fits 1/1990-12/1997 8x Series & LX450 w/Solid Brass Bushing:
Part# HUB33002 (Aftermarket) - $15.50/each
Part# HUB33001 (Toyota) - $97.50/each
(One bushing required per side, two per axle)


Fits 1/1990-12/1997 8x Series & LX450 with Replacement/Upgrade Spindles Featuring Bushing/Bearing Combo:
Part# HUB35001AFT (Aftermarket Bushing) - $6.50/each
Part# HUB35001 (Toyota Bushing) - $10.50/each

Part# HUB33011 (Toyota Bearing) - $58.50/each
(One bushing and one bearing required per side, two of each per axle)

Fits 1998-2007 UZJ100 & LX470 with Bushing/Bearing Combo:

Part# HUB35001AFT (Aftermarket Bushing) - $6.50/each
Part# HUB35001 (Toyota Bushing) - $10.50/each

Part# HUB33011 (Toyota Bearing) - $58.50/each
(One bushing and one bearing required per side, two of each per axle)





HG560010 Shown


Spindle Gasket - $5.50 ea.
Between spindle and knuckle
One required per side, 2 per axle
(Fits 69-9/75' FJ40/55)
Part# HG560010

Spindle Gasket - $5.50 ea
Between spindle and knuckle
One required per side, 2 per axle
(Fits 9/75'-1/90' FJ40/55/60/62)
Part# HG560011

Spindle Gasket - $5.50 ea
Between spindle and knuckle housing
One required per side, 2 per axle
(Fits 1/90' - 97' FJ80/FZJ80/LX450)
Part# HG560020





HG60010 Shown


Brake Backing Plate Gasket- $5.50 ea.
Between brake backing plate and spindle
One required per side, 2 per axle
(Fits 69-9/75' FJ40/55)
Part# HG60010

Brake Backing Plate Gasket - $5.50 ea.
Between brake backing plate and spindle
One required per side, 2 per axle
(Fits 9/75'-97' FJ40/55/60/62/80)
Part# HG60011





HG93011 Shown

Hub Dust Seal- $10.50 ea.
One required per side, 2 per vehicle
(Fits 9/75'-1/90' FJ40/55/60/Mini Truck)
Part# HG93011

Hub Dust Seal- $17.50 ea.
One required per side, 2 per vehicle
(Fits 1/90'-97' FJ80/FZJ80/LX450)
Part# HG93003





HG62001 Shown

Front Hub/Wheel Seal E-9/1975- $6.00 ea.
One required per side, 2 per vehicle
(Fits E- 9/1975 FJ40/55 - Drum Brake Front Axle)
Part# HG55010

Front Hub/Wheel Seal 75-97- $5.25 ea.
One required per side, 2 per vehicle
(Fits 9/75'-97' FJ40/55/60/80/PU/4R - Disc Brake Front Axle)
Part# HG62001

Front Hub/Wheel Seal 100 Series - $26.50 ea.
One required per side, 2 per vehicle
(Fits 98'-07' UZJ100 & LX470)
Part# HUB70011





FA33085


FA33085MA


Inner Axle Seal - $2.50 ea.
A must have for knuckle repairs or birf swaps.
(Fits 69'-90' FJ40/55/60/62 & 79'-85' Mini Truck)
Part# FA33085

Marlin Crawler Inner Axle Seal - $8.50 ea.
Heavy Duty Inner Axle Seal
(Fits 69'-90' FJ40/55/60/62 & 79'-85' Mini Truck)

Part# FA33085MA





FA35010


FA35010MA


Inner Axle Seal - $4.75 ea.
A must have for knuckle repairs or birf swaps.
(Fits 91'-97' FJ/FZJ80)
Part# FA35010

Marlin Crawler Inner Axle Seal - $12.00 ea.
Heavy Duty Inner Axle Seal
(Fits 91'-97' FJ/FZJ80)

Part# FA35010MA





  Disc Brake Backing Plate Eliminator Kit - $20/pair
Spacer allows you to delete your bent or damage disc brake backing plates for a clean look. Sold per pair, one pair required per front axle.
(Fits 9/75'-90' FJ40/55/60/62 & 79'-85' Mini Truck)

Part# FAXTBPELIM




FACV60120
  100 Series & LX470 CV Boot Replacement Kit - $53.50/each
Kit comes complete with boots, clamps, clips and grease for ONE (1) CV Axle. Two kits required per vehicle.
(Fits 1/98-2007 UZJ100 & LX470 IFS Models)

Part# FACV60120




FA15007 Shown


FASCALE Shown


TOOLFFSOCK Shown


OEMFIPGO


Axle Overhaul Tools & Supplies

54mm Front Hub Socket - $21.50
A must have in the garage or on the trail. 54mm drive hub socket is a mandatory tool while performing any work on the FRONT axle. Available in 3/8" drive.
(Fits 9/1975-2007 FJ40/55/60/62/80/LX450/100/LX470 & 79'-85' Mini-Truck)
Part# FA15007

Spring Scale Gauge - $22.50
A must have in the shop when rebuilding a front (or full-float rear) axle, repacking wheel bearings or setting up knuckle bearing preload. Use of tool is covered by instruction manuals included with our knuckle rebuild and wheel bearings kits.
(Fits All Year Land Cruisers, 4Runners & Pickups)
Part# FASCALE

Knuckle Stud Socket - $10.00
Use our Knuckle Stud Socket to install the 1979-97 knuckle studs with proper torque. Works with KS12005 studs only.
(Fits All Year Land Cruisers, 4Runners & Pickups w/KS12005 upper and lower knuckle studs)
Part# KSSOCKET

Snap Ring Pliers - $21.00
For use on the free-hub/drive flange snap ring found on Early - 2007 Land Cruisers including the 2x/4x/5x/6x/7x/8x/10x models. Allows easy removal and installation of the snap ring without damage.
Part# FASNAP

FF Rear Hub Socket - $32.50
A must have in the garage or on the trail.
(Fits 1/79 & newer 4x/5x/6x/7x/8x/105 with full-float REAR axle)
Part# TOOLFFSOCK

Form-in-Place-Gasket (FIPG) - $24.50
OEM Toyota# 1281 - Orange - 3.5oz (100g)
(Fits all year Land Cruisers, for use on axles, transmissions and t-cases)
Part# OEMFIPGO





FACL28038


FACL27091


FACL28036



Inner Axle & Birf Snap Rings - $5.25 each
OEM Replacement Axle/Birf Snap Rings. Two of each part number required for full replacement of rings.

Fits 67'-9/75' FJ40/45/55 - Drum Brake
At Free Hub/Drive Flange - Part# FACL28038
Inside Birf - Part# FACL27091
Birf Stop - Part# FACL28036

Fits 9/75'-90' 40/55/60/PU/4R - Disc Brake
At Free Hub/Drive Flange - Part# FACL31007
Inside Birf - Part# FACL27091
Birf Stop - Part# FACL28036

Fits 91'-97' FJ/FZJ80
At Free Hub/Drive Flange - Part# FACL31007
Inside Birf - Part# FACL34005
Birf Stop - Part# Not Required




  Spindle Nut Kit - $11.00 ea.
Includes spindle two nuts, lock washer and tab washer.
(Fits 9/1975-2007 FJ40/55/60/62/80/100 & 79'-85' Mini Truck)
Part# FA60011K




FA38020


FA42025



Spindle Lock Washer - $3.00/each
(Fits 69'-9/75' FJ40/55 Drum Axles, 2 required per axle)
Part# FA38020

Spindle Lock Washer - $3.00/each
(Fits 9/75'-2007 All Disc Brake Models, 2 required per axle)
Part# FA42025




FA38013


FA42030



Spindle Tab/Thrust Washer - $3.00 ea.
(Fits 69'-9/75' FJ40/55 Drum Axles, 2 required per axle)
Part# FA38013

Spindle Tab/Thrust Washer - $3.00 ea.
(Fits 9/75'-2007 All Disc Brake Models, 2 required per axle)
Part# FA42030




FA60010


FA60011



Drum Spindle Nut  - $5.00/each
Replace damaged & worn nuts.
Four required per axle, 2 required per side, 4 per axle
(Fits '58-9/75' FJ40/55 Drum Brake Front Axles)
Part# FA60010

Disc Spindle Nut  - $5.00 ea.
Replace those damaged/worn nuts.
Four required per axle, 2 per side.
(Fits 9/75'-97' FJ40/55/60/62/80 & 79'-85' Mini Truck)
Part# FA60011





FAWB6975K

FAWB7597K


FAWB9807T

FAWB9807TKIT

  Front Wheel Bearing Kit
Each set comes complete with two wheel bearings, wheel seal, locker washer and hub gasket. One required per side, two per vehicle.

Part# FAWB6975K                                           - $69
Japanese Bearings
(Fits 58'-9/75' FJ40/55)

Part# FAWB7597K                                          - $50
Koyo Bearings
(Fits 9/75'-1/90' FJ40/55/60/62/Mini)

Part# FAWB7590T                                          - $40
Timken Bearings
(Fits 9/75'-1/90' FJ40/55/60/62/Mini)

Part# FAWB9097K                                          - $50
Koyo Bearings
(Fits 90'-97' FJ/FZJ80 & LX450)

Part# FAWB9097T                                          - $40
Timken Bearings
(Fits 90'-97' FJ/FZJ80 & LX450)

Part# FAWB9807T                                          - $87.50
Timken Bearings (OEM Toyota Supplier)
(Fits 98'-07' UZJ100 & LX470, also includes thrust washer)

Part# FAWB9807TKIT                                    - $14.50
Snap Ring Kit (6 various thickness) for FAWB9807T
(Fits 98'-07' UZJ100 & LX470) - 1 Req'd per vehicle.





KS6979 Shown



Front Axle Knuckle Stud Parts:

Knuckle Stud
E-79' - Part# KS11033                        - $3.25 ea.
79-97' -Part# KS12005                       - $2.50 ea.

Use our Knuckle Stud Socket to install the 1979-97 knuckle studs with proper torque. Works with KS12005 only.
Part# KSSOCKET - $10.00

Cone Washer
E-79' - Part# KS55010                          - $3.50 ea.
79-97' - Part# KS60020                        - $3.50 ea.

Flat Washer
E-79' - Part# KS01100                        - $1.25 ea.
79-97' - Part# KS01200                      - $1.00 ea.

Nut
E-79' - Part# KS11059                          - $1.50 ea.
79-97' - Part# KS71200                       - $1.50 ea


Stud Kits (8-12 required per axle):
(Includes Stud, Cone Washer, Flat Washer & Nut)
E-79'             Part# KS6979               - $9/kit
79'-97'         Part# KS7990               - $8/kit





HUBFHT001/HUBFHT002


HUBFHT007


HUBFHT008


HUBFHT011


HUBFHT013



AISIN Locking Hubs (Complete)

We have 100's of AISIN hubs in stock for nearly every Toyota application. Please call if you don't see the hub you are after.

Fits 8/99+ 76/78/79 Series - w/5 Lug Wheels - GOLD
Part#
HUBFHT001 - $127.50/each

Fits 1/90-1/99 7x/8x Series (See Note Below) w/6 Lug Wheels - GOLD
Part#
HUBFHT002 - $117.50/each

NOTE:
4/1994 - 1/1998 80 Series vehicles will require replacement birfields featuring a double groove for the snap ring OR machining a second groove in the stock birfield for a lower snap ring. We have birfs in stock to accommodate this. Please call for specifics.

Fits 79-85 Toyota PU& 4Runner - RED w/White Lettering
Part#
HUBFHT005 - $157.50/each

Fits Misc. 79-90 LC/4R/PU - ORANGE
Part#
HUBFHT007 - $127.50/each

Fits Misc. 79-90 LC/4R/PU - RED
Part#
HUBFHT008 - $107.50/each (Sale Price)

Fits 1979/80 LC (and later models) - GREY
Part#
HUBFHT011 - $157.50/each

Fits 1979-90 LC 6x/7x - GOLD
Part#
HUBFHT013 - $137.50/each

Fits 1995-01 Tacoma - BLACK/SILVER
Part#
HUBFHT019 - $147.50/each

FAQ: What color was factory on my Land Cruiser?
Great question, we are working on comprehensive guide, in the meantime please call. 9/75-1/79 4x/5x would have come equipped with either solid drive flanges or ASCO hubs (ASCO later became AISIN). Many with solid drive flanges were replaced with WARN hubs at the dealer level before being sold. From 1/79-80 the 4x received a grey AISIN hub, after 1980 the 4x/6/ & 7x received a gold colored hub. All non-US 8x/10x Land Cruisers received gold hubs. These can be retrofitted to US models with some modifications.





  Heavy-Duty Aisin Locking Hubs (Complete)

Heavy Duty AISIN black body hubs featuring Longfield chromoly inner hub gears and an O-Ring sealed body. A direct fit for your 79-95 Land Cruisers (short birf 80's) and 79-85 pickups and 4Runners. Can also be fitted to disc brake swapped earlier Cruisers, 9/75-79 with upgraded birfs & later 80's with aftermarket shafts or machining to the stock birf.
Part# HUBAISINHD - $147.50/each (Sale Price)




HUB301506-1-KIT


HUB303108-1-KIT



Aisin Chromoly Gear Components

Longfield Chromoly Inner Hub Gears
(Fits 1979-1/1997 4x/5x/6x/7x/8x Series w/Aisin Hubs. One kit per axle/vehicle. Includes a pair of inner hub gears)

Part# HUB301506-1-KIT - $103.50

Longfield Chromoly Inner/Outer Hub Gear Combo
(Fits 1979-1/1997 4x/5x/6x/7x/8x Series w/Aisin Hubs. One kit per axle/vehicle. Includes a pair of Chromoly Inner Gears and Outer Hub Gears)

Part# HUB303108-1-KIT - $197.50

Longfield Chromoly IFS Hub Conversion Gears
(Allows use of 1986-1995 IFS Aisin hubs to be fitted to 1979-1/1997 4x/5x/6x/7x/8x Series vehicles. One kit per axle/vehicle. Includes a pair of inner hub gears)

Part# HUB301507-1-KIT - $103.50





HG60020


HUBFLG60010


HUBFLG60070


HG60022


HUB060010


HUBDETENT


HUB6997K


HUB07057 Shown



Aisin Free-Wheel Hub Parts & Gaskets

Aisin Hub to Wheel-Hub Gasket - $2.50
One required per side, 2 per axle

(Fits 1958-1/1990 40/55/60/70 Series w/Aisin Hub)
Part# HG60020

Aisin Hub to Wheel-Hub Gasket - $2.00
One required per side, 2 per axle

Fits 1/1990-1/98 7x/8x Series w/ Aisin hub)
Part# HUBFLG60010

Aisin Hub to Wheel-Hub Gasket - $2.00
One required per side, 2 per axle

Fits 1/1998 - 07 7x/10x Series w/ Aisin hub)
Part# HUB60070

Aisin Hub Face Paper Gasket - $2.50
One required per side, 2 per axle

(Fits 1958-2007 4x/5x/6x/7x/8x/10x Series w/Aisin Hub)
Part# HG60022

Aisin Hub Dial O-Ring - $3.75
OEM Toyota - One required per side, 2 per axle

(Fits 1958-2007 4x/5x/6x/7x/8x/10x Series w/Aisin Hub)
Part# HUB060010

Aisin Hub Dial Detent Ball & Spring - $4.00
One required per side, 2 per axle

(Fits 1958-2007 4x/5x/6x/7x/8x/10x Series w/Aisin Hub)
Part# HUBDETENT

Aisin Hub/Drive Flange Stud Kit- $4.50
Aftermarket - Six required per side, 12 per axle

Includes Stud, Cone Washer, Flat Washer & Nut

(Fits 1958-1/1998 40/55/6062/80 Front & Full-Float Rear Axles)
Part# HUB6997A

Aisin Hub/Drive Flange Stud Kit- $8.00
OEM Toyota - Six required per side, 12 per axle

Includes Stud, Cone Washer, Flat Washer & Nut

(Fits 1958-1/1998 40/55/6062/80 Front & Full-Float Rear Axles)
Part# HUB6997K

Aisin Hub/Drive Flange Stud - $2.50
OEM Toyota - Six required per side, 12 per axle

(Fits 1958-1/1998 40/55/6062/70/80 Series)
Part# HUB08235

Aisin Hub/Drive Flange Cone Washer - $4.00
OEM Toyota - Six required per side, 12 per axle

(Fits 1958-1/1998 40/55/6062/70/80 Series)
Part# HUB60010

Aisin Hub/Drive Flange Lock Washer - $.75
OEM Toyota - Six required per side, 12 per axle

(Fits 1958-1/1998 40/55/6062/70/80 Series)
Part# HUB00800

Aisin Hub/Drive Flange Nut - $1.00
OEM Toyota - Six required per side, 12 per axle

(Fits 1958-1/1998 40/55/6062/70/80 Series)
Part# HUB08204

Aisin Hub/Drive Flange Dowel Pin - $1.50
OEM Toyota - Two required per side, 4 per axle

(Fits 1958-1/1998 40/55/6062/70/80 Series)
Part# HUB07057

1998+ 7x/10x Series Aisin Hub/Drive Flange Stud Kit- $5.00
Six required per side, 12 per axle

Includes Stud, Cone Washer, Flat Washer & Nut

(Fits 1/1998-2007 7x/10x Front & Full-Float Rear Axles)
Part# HUB9807K

1998+ 7x/10x Aisin Hub/Drive Flange Dowel Pin - $2.00
OEM Toyota - Two required per side, 4 per vehicle

(Fits 1/1998-2007 7x/10x Front & Full-Float Rear Axles)
Part# HUB10032





HUBFLG43421


HUBFLG60013


HUBFLG60020


HUBFLG60022AFT


HUBFLG60040


HUB35010


HG60020


HUBFLG60010


HUBFLG60070




HUB6997K


HUB07057



Aisin Free-Wheel Hub Parts & Gaskets

Drive Flange - $37.50
One required per side, 2 per axle

Fits Early-9/75 4x/5x w/Course Birf & drive flange NOT locking hub)
Part# HUBFLG43421

Drive Flange - $37.50
One required per side, 2 per axle

Fits 9/75-1/79 4x/5x w/Fine Birf & drive flange NOT locking hub)
Part# HUBFLG460012 (Joint Fuji Japanese)

Drive Flange - $42.50
One required per side, 2 per axle

Fits 1/79-1/90 4x/5x/6x/7x w/Fine Birf & drive flange NOT Aisin hub)
Part# HUBFLG60013 (Joint Fuji Japanese)

Drive Flange - $57.50
One required per side, 2 per axle

Fits 01/1990-04/1994 80 Series w/drive flange NOT Aisin hub)
Part# HUBFLG60020 (OEM Toyota)

Drive Flange - $24.50
One required per side, 2 per axle

Fits 01/1990-04/1994 80 Series w/drive flange NOT Aisin hub)
Part# HUBFLG60022AFT (Aftermarket)

Drive Flange - $59.50
One required per side, 2 per axle

Fits 04/1994-01/1998 80 Series w/drive flange NOT Aisin hub)
Part# HUBFLG60040 (OEM Toyota)

Drive Flange - $67.50
One required per side, 2 per axle

Fits 01/1998-2007 100 Series w/drive flange NOT Aisin hub)
Part# HUBFLG60060 (OEM Toyota)

Drive Flange Dust Cap - $3.95
One required per side, 2 per axle

Fits 58'-1/98' FJ40/55/60/62/70/80 w/drive flange NOT Aisin hub)
Part# HUB35010

Drive Flange Dust Cap - $2.75
One required per side, 2 per axle (Aftermarket)

Fits 58'-1/98' FJ40/55/60/62/70/80 w/drive flange NOT Aisin hub)
Part# HUB35010

Drive Flange Dust Cap - $4.25
One required per side, 2 per axle (OEM Toyota)

Fits 58'-1/98' FJ40/55/60/62/70/80 w/drive flange NOT Aisin hub)
Part# HUB35010OEM

Drive Flange Dust Cap - LONG - $4.00
One required per side, 2 per axle

Fits 1/90-1/98 80 w/narrow drive flange NOT Aisin hub. For use with aftermarket long birf applications and original 90-94 narrow drive flange)
Part# HUB35010LONG

Drive Flange to Wheel-Hub Gasket - $2.50
One required per side, 2 per axle

Fits E-1/1990 4x/5x/6x/7x w/drive flange NOT Aisin hub)
Part# HG60020

Drive Flange to Wheel-Hub Gasket - $2.00
One required per side, 2 per axle

Fits 1/1990-1/1998 80 Series w/drive flange NOT Aisin hub)
Part# HUBFLG60010

Drive Flange to Wheel-Hub Gasket - $2.00
One required per side, 2 per axle

Fits 1/1998 - 07' UZJ100 & LX470 w/ OEM drive flange
Part# HUB60070

Aisin Hub/Drive Flange Stud Kit- $8.00
Six required per side, 12 per axle

Includes Stud, Cone Washer, Flat Washer & Nut

(Fits 1958-1/1998 40/55/6062/80 Front & Full-Float Rear Axles)
Part# HUB6997K

Aisin Hub/Drive Flange Stud Kit- $5.00
Six required per side, 12 per axle

Includes Stud, Cone Washer, Flat Washer & Nut

(Fits 1/1998-2007 7x/10x Front & Full-Float Rear Axles)
Part# HUB9807K

Aisin Hub/Drive Flange Stud - $1.75
Six required per side, 12 per axle

(Fits 1958-1/1998 40/55/6062/70/80 Series)
Part# HUB08235

Aisin Hub/Drive Flange Cone Washer - $3.85
Six required per side, 12 per axle

(Fits 1958-1/1998 40/55/6062/70/80 Series)
Part# HUB60010

Aisin Hub/Drive Flange Lock Washer - $.75
Six required per side, 12 per axle

(Fits 1958-1/1998 40/55/6062/70/80 Series)
Part# HUB00800

Aisin Hub/Drive Flange Nut - $.85
Six required per side, 12 per axle

(Fits 1958-1/1998 40/55/6062/70/80 Series)
Part# HUB08204

Aisin Hub/Drive Flange Dowel Pin - $1.50
Two required per side, 4 per axle

(Fits 1958-1/1998 40/55/6062/70/80 Series)
Part# HUB07057








Individual Differential/R&P Components











DG36010


DG60070


DG60080


DCG35010



LC Differential Gaskets


Differential Gasket                  - $8.00
Paper Gasket (Fits 1958-97 FJ40/55/60 & 80 Rear)
Part# DG36010

Differential Gasket                  - $9.50
Paper Gasket (Fits 90-97 80 Rear WITH OE Locker)
Part# DG60070

Differential Gasket                  - $9.50
Paper Gasket (Fits 90-97 80 Front WITH OE Locker)
Part# DG60080

Differential Gasket                  - $9.50
Paper Gasket (Fits 90-97 8x Front W/O OE Locker)
Part# DG60090

Differential Cover Gasket         - $8.00
Cork Gasket (Fits 58'-97' FJ40/55/60 & 80 Rear w/Diff Cover Rear)
Diff Cover ONLY

Part# DCG35010



DG60050 Shown


Mini Differential Gaskets

Differential Gasket                  - $8.00
Paper Gasket (Fits F & R 8" Pickup/4Runner 4cy & V6 W/O E-Locker)
Part# DG35010

Differential Gasket                  - $9.50
Paper Gasket (Fits Rear 8" Tacoma/4Runner 4cy & V6 WITH E-Locker)
Part# DG60050





PN38035


PN38035MA



Pinion Seal - $6.00 ea.
Differential pinion seal
(Fits 69'-97' FJ40/55/60/70/80)
Part# PN38035





Marlin Crawler Heavy Duty Pinion Seal - $16.00 ea.
Heavy Duty Double-Lip Differential Pinion Seal
(Fits 69'-97' FJ40/55/60/70/80)
Part# PN38035MA





PNCSTLCA


PN30308M


PN45066


PNTW35011


Differential Internal Components

Pinion Solid Spacers:
(Eliminates need for crush sleeve)

Part# PNCSTLCA - $55.00

(Fits 1985-1990& Earlier w/Aftermarket Pinion)

Part# PNCSTLCB - $55.00
(Fits 1990-1997 FJ/FZJ80 Rear 9.5" Diff)

Part# PNCS4CYL - $32.00
(Fits 4 Cylinder 8" Differentials)

Part# PNCSTLCF - $32.00
(Fits 1990-1997 FJ/FZJ80 Front 8" Diff & V6 8" Applications)

Pinion Bearings

Inner/Lower Pinion Bearing - $39.50/each
(Fits 69'-97' FJ40/55/60/70/80R)
Timken Bearing & Race, 1 required per axle
Part# PN30308M

Outer/Upper Pinion Bearing - $37.50/each
(Fits 69'-97' FJ40/55/60/70/80R)
Timken Bearing & Race, 1 required per axle
Part# PN30306M

Carrier Bearings

45mm I.D. Carrier Bearing - $37.50/each
(Fits Early-'90 FJ40/55/60/6270)
Timken Bearing & Race, 2 required per axle
Part# PN45066

50mm I.D. Carrier Bearing - $38.50/each
(Fits 1958-1/1998 FJ40/55/60/70/80R/100R w/OE 50mm ID carrier bearing or 50mm ARB/other carrier upgrade)
Timken Bearing & Race, 2 required per axle
Part# PN32010X

Side Gear Thrust Washers
Differential Side Gear Thrust Washers, Various Thickness's available. (Fits Early - 1/1998 4x/5x/6x/7x/80R)
2 required per axle/differential

1.60mm Thick - Part# PNTW60011 - $7.50/each
1.75mm Thick - Part# PNTW60021 - $8.50/each
1.90mm Thick - Part# PNTW60031 - $11.50/each
2.05mm Thick - Part# PNTW60041 - $11.50/each

Spider Gear Thrust Washers
Differential Spider Gear Thrust Washers - $5.50/each
(Fits 69'-97' FJ40/55/60/70/80R)
2 required per axle/differential.

Part# PNTW35011





PN20061 Shown

Pinion Nut
Castle (Cotter Pin) Style
(Fits 1958-8/1969 40/55 Series)
Part# PN19010 - Discontinued, use PN20061

Pinion Nut - $4.50 ea.
Stake Nut Style
(Fits 8/1969-7/1980 40/55 Series)
Part# PN20061

Pinion Nut - $4.50 ea.
Stake Nut Style
(Fits 8/1980-4/1985 40/60 Series)
Part# PN20001

Pinion Nut - $4.50 ea.
Stake Nut Style
(Fits 4/1985-1/1990 60/62 Series)
Part# PN22016

Pinion Nut - $4.50 ea.
Stake Nut Style
(Fits 8/1990-8/1993 FJ80/FZJ80 Front Axle)
Part# PN20001

Pinion Nut - $4.50 ea.
Stake Nut Style
(Fits 8/1993-1/1998 FJ80/FZJ80 Front Axle)
Part# PN20018

Pinion Nut - $4.50 ea.
Stake Nut Style
(Fits 01/1990-1/1998 FJ80/FZJ80 Rear Axle)
Part# PN22016








Rear Axle Rebuild Kits







RAK5873SF


RAK7395SF


RAK7580FFK


RAK8092FFK


RAK9397FFK


RAK9397FFELK

  Semi-Float Rear Axle Bearing/Seal Kits
One required per axle, 2 Koyo Bearings, 2 Wheel Seals, and 2 differential gaskets.

Part# RAK5873SF                                         -$114.50
(Fits 58'-9/73' FJ40/55 Semi-Float Axles)

Part# RAK7395SF                                          - $95.50
(Fits 9/73'-1/95' FJ40/55/60/62/80 SF Axles)

Full-Float Rear Axle Bearing/Seal Kits
One required per axle, 4 wheel bearings, 2 inner axle seals, 2 axle flange gaskets, 2 wheel seals, 2 dust seals, 1 differential gasket.

Part# RAK7580FFT                                           - $110
Includes Timken Bearings

Fits 9/75 -8/80' FJ40/55 Full-Float Axles)

Part# RAK7580FFK                                          - $135
Includes Koyo Bearings

Fits 9/75 -8/80' FJ40/55 Full-Float Axles)

Part# RAK8092FFT                                           - $130
Includes Timken Bearings

(Fits 8/80'-8/92' FJ40/60/62/70/80 FF Axles)

Part# RAK8092FFK                                          - $155
Includes Koyo Bearings

(Fits 8/80'-8/92' FJ40/60/62/70/80 FF Axles)

Part# RAK9397FFT                                           - $160
Includes Timken Bearings

(Fits 8/92'-1/98' FJ70/FZJ80 FF Axles)

Part# RAK9397FFK                                          - $185
Includes Koyo Bearings

(Fits 8/92'-1/98' FJ70/FZJ80 FF Axles)

Part# RAK9397FFELT                                       - $165
Includes Timken Bearings

(Fits 8/92'-1/98' FJ70/FZJ80 FF Axles W/OE Locker)

Part# RAK9397FFELK                                      - $190
Includes Koyo Bearings

(Fits 8/92'-1/98' FJ70/FZJ80 FF Axles W/OE Locker)

Part# RAK9807FFT                                           - $170
Includes Timken Bearings

(Fits 1/98' + 7x/105 w/Rear Full-Float Axle)

Part# RAK9807FFK                                          - $195
Includes Koyo Bearings

(Fits 1/98' + 7x/105 w/Rear Full-Float Axle)

Part# RAK9807FFELT                                       - $175
Includes Timken Bearings

(Fits 1/98' + 7x/105 w/Rear Full-Float Axle w/OE E-Locker)

Part# RAK9807FFELK                                      - $197.50
Includes Koyo Bearings

(Fits 1/98' + 7x/105 w/Rear Full-Float Axle w/OE E-Locker)




    FAQ: Do I have a Semi-Float or a Full-Float axle?
Great question. A semi-float axle means the rear axle shafts not only support the rotational load but also the load of the vehicles weight, so the wheel bolts directly to the axle shaft. A full-float axle has an axle shaft that can be removed while the tire is still bolted to the hub assembly which actually supports the weight of the vehicle. Any US spec FJ40/55/60 and 62 is going to have a semi-float rear axle (all front axles are full-float for what it is worth). The US spec FJ80 was semi-float and with the introduction of the FZJ80 the full-float was introduced. The easiest way to tell on most applications is the presence of a diff cover. If you have a removable diff cover on the back of your rear axle, you have a semi-float. Clear a mud?







Individual Rear Axle Components






Rear Axle Seal Oil Deflector Gasket - $3.00 ea.
One per side required, Semi-Float Axle.
(Fits 9/73'-1/95' FJ40/55/60/62/80)
Part# RA50020




RS47029


RS47001


Rear Axle Seal 58'-73'                                - $6.00
One per side required, Semi-Float Axle
(Fits 69-8/73' FJ40/55)
Part# RS47029




Rear Axle Seal 73'-95'                                - $6.00
One per side required, Semi-Float Axle
(Fits 9/73'-1/95' FJ40/55/60/62/80)
Part# RS47001





RA47007


RA47013


Rear Axle Bearing 58'-73'                         - $42.50
One per side required, includes axle race.
(Fits 69-8/73' FJ40/55 Semi-Float Axles)
Part# RA47007




Rear Axle Bearing 73'-95'                         - $34.50
One per side required, Koyo Bearing
(Fits 9/73'-1/95' FJ40/55/60/62/80 Semi-Float Axles)
Part# RA47013





    Full Floating Axle Parts
WE NOW CARRY OEM FULL-FLOAT AXLE PARTS
Click Here For Pictures/Info/Pricing







Clutch/Brake Components
















BRH32255


BRH02078


BRH02230


BRH34305


BRH39855


BRH33005


BRH33005

BRH33805


BRH02358


BRH02612


BRH02613


BRH02934


BRH02933


SLEESTF1008



Brake & Clutch Replacement Hoses:
High Quality OEM Toyota & Japanese Replacement Brake & Clutch Hydraulic Hoses

40 Series Land Cruisers (BJ/FJ/HJ40/41/42/43/45/47 Models)

Axle to Backing Plate (2 Required)
1958-7/1970 - Not Available
7/1970 - 6/1980 - Part# BRH32255 - $22.50/each (Japanese)
7/1970 - 6/1980 - Part# BRH32255OEM - $27.50/each (OEM Toyota)
9/1980 - 10/1984 - Part# BRH32305 - $22.50/each (Japanese)

Chassis To Front Axle (1 Required)
1958-7/1970 - Not Available
7/1970 - 9/1974 - Part# BRH02078 - $28.50/each (Japanese)
9/1975 - 10/1984 - Part# BRH32605 - $28.50/each (Japanese)

Chassis to Rear Axle (1 Required)
1958 - 10/1969 - Not Available
10/1969 - 6/1970 - Not Available

7/1970 - 10/1984 - Part# BRH02230 - $28.50/each (Japanese)

Chassis to Clutch Slave (1 Required)
1958-6/1970 - Not Available
7/1970-8/1971 - Not Available
9/1971-1/1976 - Part# BRH34305 - $28.50/each (Japanese)
1/1976-8/1977 - Part# BRH02230 - $28.50/each (Japanese)
9/1977-10/1984 - Part# BRH02358 - $50.50/each (OEM Toyota)


55 Series: (Call for pricing)
Axle to Backing Plate - Part# BRHxxxxxx
Chassis To Front Axle - Part# BRHxxxxxx
Chassis to Rear Axle - Part# BRHxxxxxx
Chassis to Clutch Slave - - Part# BRHxxxxxx


60 Series Land Cruiser (BJ/FJ/HJ60/62/62 Models)

Axle to Backing Plate (2 Required)
8/1980 - 1/1990 - Part# BRH39855 - $22.50/each

Chassis To Front Axle (1 Required)
8/1980 - 1/1990 - Part# BRH33005 - $49.50/each (OEM Toyota)

Chassis to Rear Axle (1 Required)
8/1980 - 10/1984 - Part# BRH33605 - $28.50/each
11/1984 -1/1990 - Part# BRH33805 - $51.50/each (OEM Toyota)

Chassis to Clutch Slave (1 Required)
8/1980 - 4/1985 - Part# BRH02358 - $50.50/each (OEM Toyota)
9/1985 - 8/1987 - Part# BRH50320 - $37.50/each (OEM Toyota)


80 Series Land Cruiser (FJ/FZJ80 Models)

Axle to Caliper (1 Required per side)
1/1990-2/1992 - Left Hand - Part# BRH02612 - $48.50 (OEM)
1/1990-2/1992 - Right Hand - Part# BRH02613 - $48.50 (OEM)

Chassis To Front Axle (1 Required)
1/1990 - 1/1995 - Part# BRH02934 - $62.50 (OEM Toyota)

Chassis to Rear Axle (1 Required)
1/1990 - 12/1994 - Part# BRH02933 - $48.50 (OEM Toyota)

80 Series Extended Kit (3 Lines)
Part# SLEESTF1008 - $99.50/set





BR04491 Shown


BRAD0606 Shown



Brake Pads - All Models:

Front Brake Pads 9/1975-1/1990 - $22.50/set
One set per axle. High Quality Japanese
(Fits 9/1975-1/1990 40/55/60/70 Series)
Part# BR04491

Front Brake Pads 9/1975-1/1990 - $37.50/set
One set per axle. High Quality Japanese - AISIN
(Fits 9/1975-1/1990 40/55/60/70 Series)
Part# BR04465

Front Brake Pads 9/1975-1/1990 - $61.50/set
One set per axle. OEM Toyota
(Fits 9/1975-1/1990 40/55/60/70 Series)
Part# BRYZZCO

Front Brake Pads - 80 Series - $62.50/set
One set per axle. High Quality Japanese - AISIN
(Fits 1/1990-1/1998 80 Series)
Part# BRAD0502

Front Brake Pads - 80 Series - $78.50/set
One set per axle. OEM Toyota
(Fits 1/1990-1/1998 80 Series)
Part# BR60020F

Rear Brake Pads - 80 Series - $57.50/set
One set per axle. High Quality Japanese - AISIN
(Fits 1993 - 1/1998 80 Series w/ Rear Disc Brake)
Part# BRAD0606

Rear Brake Pads - 80 Series - $78.50/set
One set per axle. OEM Toyota
(Fits 1993 - 1/1998 80 Series w/ Rear Disc Brake)
Part# BR60020R

Front Brake Pads - 100 Series - $62.50/set
One set per axle. High Quality Japanese - AISIN
(Fits 1998 - 2007 100 Series)
Part# BRAD0772

Front Brake Pads - 100 Series - $78.50/set
One set per axle. OEM Toyota
(Fits 1998 - 2007 100 Series)
Part# BR60220

Rear Brake Pads - 100 Series - $57.50/set
One set per axle. High Quality Japanese - AISIN
(Fits 1998 - 2007 100 Series)
Part# BRAD0773

Rear Brake Pads - 100 Series - $78.50/set
One set per axle. OEM Toyota
(Fits 1998 - 2007 100 Series)
Part# BR60070

Front Brake Pads - 200 Series - $62.50/set
One set per axle. High Quality Japanese - AISIN
(Fits 2008+ 100 Series)
Part# BRAD1303

Rear Brake Pads - 200 Series - $62.50/set
One set per axle. High Quality Japanese - AISIN
(Fits 2008+ 200 Series)
Part# BRAD1304

Front Brake Pads - PU/4Runner - $57.50/set
One set per axle. High Quality Japanese - AISIN
(Fits 1989-1995 Truck/4Runner)
Part# BRAD0436





BRD60010 Shown


BRR60011 Shown



Front & Rear Brake Rotors & Drums (OEM TOYOTA)
Sold Individually, Order One Per Wheel

Front & Rear Brake Drum 1967-7/80 4x/5x - $98.50/each
(Fits 1967 - 9/75 Front & 1967-7/1980 Rear)
Part# BRD60010


Front Brake Rotor 9/1975-7/80 4x/5x - $98.50/each
(Fits 9/1975-7/1980 4x/5x Series)
Part# BRR60011

Front Brake Rotor 8/1980-1/90 4x/6x/7x - $83.50.50/each
(Fits 8/1980 - 1/1990 4x/6x/7x Series: Updated design, uses 6 wheel studs for mounting only)
Part# BRR60100

Rear Brake Drum 8/1980-1/90 4x/6x/7x - $182.50.50/each
(Fits 8/1980 - 1/1990 4x/6x/7x Series Rear w/OE Drum Brake)
Part# BRD60020

Front Brake Rotor 1/1990-7/1992 8x - $94.50/each
(Fits 1/1990-7/1992 FJ80/8x Series)
Part# BRR60050

Rear Brake Drum 1/1990-1994 8x - $182.50.50/each
(Fits 1/1990-7/1992 FJ80/8x Series Rear w/OE Drum Brake)
Part# BRD60150

Front Brake Rotor 1993-1/1998 8x - $79.50/each
(Fits 1993-1/1998 FZJ80/8x Series)
Part# BRR60090

Rear Brake Rotor 1993-1/1998 8x - $103.50/each
(Fits 1993-1/1998 FZJ80/8x Series w/Rear Disc Brake only)
Part# BRR60171

Front Brake Rotor 1998-07 100 Series - $79.50/each
(Fits 1998 - 2007 UZJ100 Series Front)
Part# BRR43512

Rear Brake Rotor 1998-07 100 Series - $102.50/each
(Fits 1998 - 2007 UZJ100 Series Rear)
Part# BRR60281





Front/Rear Brake Shoes 63'-80' - $42.50 ea.
One set per axle, no core charge. Fits front and rear.
High Quality Japanese

(Fits 63'-7/80 FJ40/55 DRUM)
Part# BR60010

Rear Brake Shoes 80'-94' - $42.50 ea.
High Quality Japanese

One set per axle, no core charge. Fits front and rear.
(Fits 7/80-12/94 FJ40/60/62/80 DRUM)
Part# BR60011





BRHWKITE


BRHWKITL



Front/Rear Brake Hardware Kit 63'-80' - $22.50 ea.
One kit per axle required
(Fits 63'-7/80 FJ40/55 DRUM Front & Rear)
Part# BRHWKITE

Rear Brake Hardware Kit 80'-90' - $24.50 ea.
One kit per axle required.
(Fits 7/80-12/94 FJ40/60/62/80 DRUM)
Part# BRHWKITL





BR10007 Shown


Brake Drum Retaining Screw - $1.00 ea.
OEM Toyota

One required per brake drum, 2 per axle.
(Fits 1958-7/1980 40/55 Series Front Drum and Rear Drum)
Part# BR10007

Brake Drum Retaining Screw - $1.00 ea.
OEM Toyota

One required per brake drum, 2 per axle.
(Fits 08/1980-01/1990 40/55/60 Series Rear Drum)
Part# BR10003





PB60020 Shown


PB60050 Shown


PB60092 Shown


PB60041 Shown


PB60100 Shown



40 Series Park Brake Cable
OEM Toyota Part, Fits F/2F 40/45 Series Only

(Fits 1958 - 7/1970 FJ40/45)
Part# PB60020 - $45.50

(Fits 7/1970 - 1/1975 FJ40/45 w/3 Speed Transmission)
Part# PB60021 - $87.50

(Fits 9/1973 - 1/1975 FJ40/45 w/4 Speed Transmission)
Part# PB60050 - $87.50

(Fits 1/1975 - 3/1976 FJ40/45)
Part# PB60091 - Discontinued

(Fits 3/1976 - 1/1979 FJ40/45)
Part# PB60092 - $74.50

(Fits 1/1979 - 7/1980 FJ40/45)
Part# PB60024 - $113.50

(Fits 8/1980 - 10/1982 FJ40/45)
Part# PB60130 - $115.50

(Fits 10/1982 - 10/1984 FJ40/45)
Part# PB60131 - $171.50

55 Series Park Brake Cable
OEM Toyota Part, Fits F/2F 55 Series Only

(Fits 1968 - 7/1980 FJ55)
Part# PB60041 - $52.50

60 Series Park Brake Cable
OEM Toyota Part, Fits 2F/3FE 60/62 Series Only

(Fits 8/1980 - 4/1985 FJ60)
Part# PB60100 - $105.50

(Fits 4/1985 - 1/1990 FJ60/62)
Part# PB60101 - $115.50





Park Brake Shoes - $23.50/pair
High Quality Japanese

(Fits 1958-7/1980 FJ40/55)
Part# PB60011



PBHWK


PBHWKOEM


Aftermarket Park Brake Shoe Hardware Kit - $23.50
High Quality Japanese

(Fits 1958-7/1980 FJ40/55)
Part# PBHWK



OEM Toyota Park Brake Shoe Hardware Kit - $39.50
OEM Toyota, includes additional hardware & components.

(Fits 1958-7/1980 FJ40/55)
Part# PBHWKOEM


    OEM Toyota Park Drum - $220.50
OEM Toyota Park Brake Drum

(Fits 1/1974 - 7/1980 FJ40/55)
Part# PB60012




EXTERIOR PARTS




Looking for Wheels, Wheel Spacers, Wheel Studs, Lug Studs & Lug Nuts?
See our Exterior Parts Page












Prices subject to change without notice - Prices updated 09/01/17

Drive Train I Suspension I Performance I Exterior Parts I Interior Parts I Accessories I Advance Adapters I Toyota OEM Parts
Used Parts I Custom Fabrication I Line Card I Land Use I Specials
Home I Customer Comments I About Us I Contact Us / Order I Photo Gallery

© 2003 - 2018 Cruiser Outfitters I Website Built by College Internet Solutions & Maintained by Cruiser Outfitters
